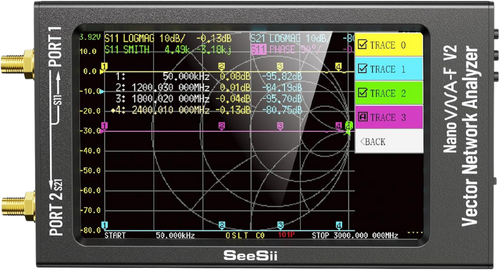

Using the NanoVNA-F V2 to X-Ray RF Attenuators

Most people buy a NanoVNA so they can tune antennas, measure SWR, and maybe sweep a filter…
but the NanoVNA can do so much more — especially if you work with RF test gear like SDRs, TinySA spectrum analyzers, or power meters.

In this video, I show how to use the NanoVNA-F V2 to characterize RF attenuators — not just trust the dB value printed on the side.

If you’ve ever measured harmonics, fed a radio into a TinySA, or tested a homebrew amplifier, then the accuracy of your attenuator determines whether you’re doing real RF engineering… or just making pretty screenshots.

🧰 What We’re Testing

For this demo, I used several common eBay/Amazon SMA attenuators:

• “20 dB” fixed attenuators

• 1 known-bad “40 dB” attenuator


And right away, the NanoVNA exposed a problem:

“This is supposed to be a 40 dB attenuator…
The NanoVNA says it’s actually 65 dB. All of my math would be wrong.”

That means if I trusted the label and fed 5 watts into my TinySA through this pad, I’d be off by 25 dB — enough to give me garbage test data.

⚡ Why This Matters

Attenuators are safety devices as much as they are RF tools.

Example:

• 5W radio ≈ +37 dBm

• Through a real 40 dB pad → −3 dBm (safe)

• Through a mislabeled 40 dB pad → -20 dBm (Bad Math)

The NanoVNA lets you verify that before you connect anything expensive.

🔍 What You’ll Learn in the Video

✅ How to calibrate the NanoVNA-F V2 for S21 attenuation measurement
✅ How to measure a fixed attenuator and read the true dB value
✅ How to tell a good attenuator from a lying one
✅ How to protect your spectrum analyzer from overload
✅ How to use markers, sweep range, and stimulus control properly

📄 Want the Step-by-Step Cheat Sheet?

Instead of rewatching the video every time, I turned the whole procedure into a 1-page printable workflow that sits on your bench.

It includes:

• Calibration sequence (Open / Short / Load / Thru)

• Suggested sweep ranges

• S21 trace configuration


Click Here To Get Your Cheat Sheets!
