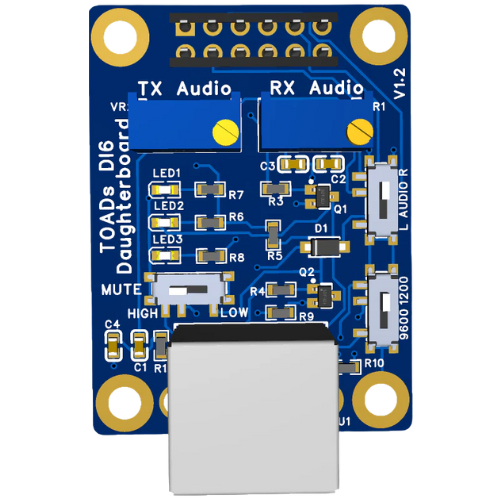

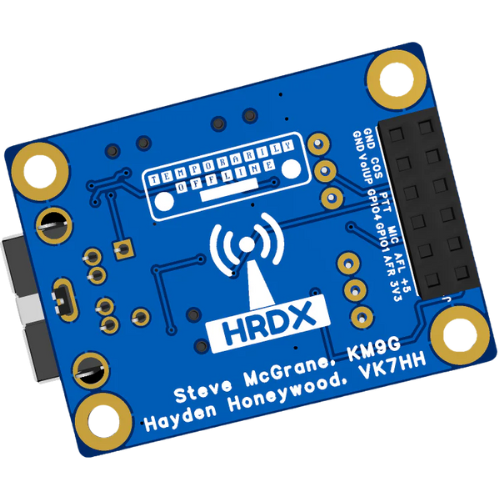

TOADS DB6 Daughterboard

The TOADs DB6 is a compact and powerful daughterboard designed to interface directly with the TOADs Digital Interface. It provides seamless connectivity to radios that feature a standard 6-pin Mini DIN data port (commonly used for packet, APRS, and digital voice modes).


Key Features:

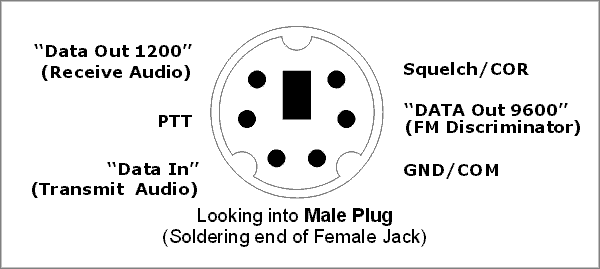

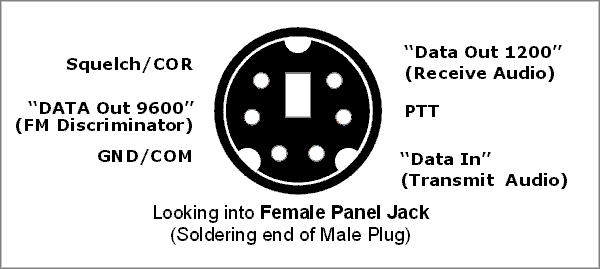

Radio Compatibility: Fits radios with a 6-pin Mini DIN DATA connector


Selectable Switches:
MUTE Control: Choose between High or Low mute logic.
Audio Source (RX): Select between the radio’s 1200 bps or 9600 bps data input.
Audio Source (TX): Route audio from either the Left or Right channel of the CM108 sound interface.


Precision Audio Control:
Two 30-turn trimpots for fine adjustment of transmit and receive audio levels—ensuring optimal performance and clean audio for digital modes.


Headers are provided with the daughterboard for easy connection to your TOADs DI board.


For full installation instructions and technical details, please refer to the manual: https://geni.us/toads-di

If you don't already have the cables needed:

You'll need a male-male 6pin cable as well: https://geni.us/mKzF

With Yaesu's CT-164 Cable, you can also address any 10-pin yaesu radios. https://geni.us/9TtM7C

The board comes with pin headers to interface with the DI board.

Watch it in action here: https://youtube.com/shorts/KzsncpilbOg?feature=share
